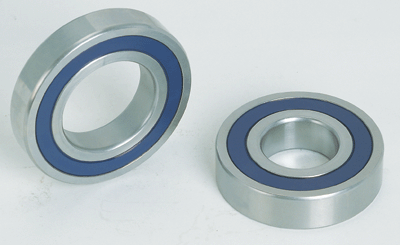

Stainless Steel Bearings

SS R series

Type d D B Ball Q'ty Angle Corner Weight (KG)
NO. Size
SSR6 OPEN 9.525 22.225 5.558 7 3.969 0.3 0.014
ZZ 7.142
SSR8 OPEN 12.7 28.575 6.35 8 4.763 0.3 0.015
ZZ 7.9375
SSR10 OPEN 15.875 34.925 7.142 10 4.763 0.6 0.028
ZZ 8.732
SSR12 OPEN 19.05 41.275 7.9375 9 6.35 0.6 0.043
ZZ 11.112
SSR14 OPEN 22.225 47.625 9.525 10 6.35 0.6 0.071
ZZ 12.7
SSR16 OPEN 25.4 50.8 9.525 10 6.35 0.6 0.085
ZZ 12.7
SSR18 OPEN 28.575 53.975 9.525 11 6.747 0.6 0.085
ZZ 12.7
SSR20 OPEN 31.75 57.15 9.525 11 6.747 1 0.094
ZZ 12.7
SSR22 OPEN 34.925 63.5 11.112 11 7.938 1 0.105
ZZ 14.288
SSR24 OPEN 38.1 66.675 11.112 12 7.938 1 0.14
ZZ 14.288
